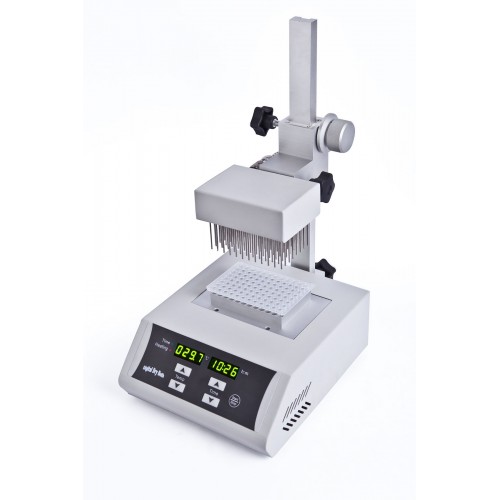

High Throughput Sample Concentrator (96 samples)

High Throughput Sample Concentrator (96 samples)

The nitrogen sample concentrator is used for concentrating or preparing samples in batches. It works by blowing nitrogen on the surface of the sample, which is being heated to accelerate evaporating and separating the solvent in the samples without oxygen. Instead of the rotary evaporation instrument, nitrogen sample concentrator can efficiently concentrate dozens of samples simultaneaously.

This is supplied with a BT1110-S a no hole block for 96 well plates heating block.  The BT1110-R 96 x 0.2ml block is also compatible.

A gas flow control valve is also available for preceise control of gas flow.

Features

  • Heating with dry bath in the bottom, nitrogen blowing on the surface
  • Adjustable air cavity height
  • Gas needle controlled independently
  • Instrument can be put into ventilation cabinet when the concentration sample is toxic solvents
  • Built-in overheating protection, automatic fault detection and fault alarms
  • LED displays temperature and time

Specifications

  • Temperature range: Ambient +5°C-150°C
  • Temperature setting range: 5°C-150°C
  • Temperature Accuracy (40~100°C): ±0.5°C
  • Temperature Accuracy (100~150°C): ±1°C
  • Block Temp. Uniformity @ 100°C:  ±0.5°C
  • Block Temp. Uniformity @ 150°C:  ±1°C
  • Temperature Display Accuracy: 0.1°C
  • Heating Time: ≤30min (from  40°C to 150°C)
  • Time Range: 1 min - 99h59min or continuous
  • Air Cavity Max. Lift Stroke: 275mm
  • Gas-in Joint Outer Diameter: ø7mm
  • Nitrogen Pressure: ≤0.1MPa
  • Nitrogen Flow Rate:0-10L/min
  • Needle Length: 80mm
  • Sample Capacity: 1 Standard Plate Block
  • Voltage: AC110V, 50/60 Hz
  • Power: 400W
  • Fuse: 250V, 3A/6A, ø5x20
  • Dimensions (WxDxH): 220 x 260 x 445 (mm)
  • Net Weight: 5.5 kgs
